Specifications
Specifications for each major model
| MODEL | CAPA | Size (mm) | Size (with safety bar) | Weight | Pondage | MAIN PUMP | FILTRATION |
|---|---|---|---|---|---|---|---|
| SWN-05 | 5㎥/D | L 730 x W 515 x H 1900 | - | 0.8 TON | 1 TON | 2ph 0.5kW x 1EA | 3.5L/min |
| SWN-10 | 10㎥/D | L 930 x W 515 x H 1973 | - | 1 TON | 2 TON | 2ph 1kW x 1EA | 7L/min |
| SWN-100 | 100㎥/D | L 4,040 x W 2,250 x H 2,600 | L 4,040 x W 3,320 x H 3,700 | 6.5 TON | 14 TON | 3ph 1.5kW x 2EA | 70L/min |
※ 20㎥/D, 50㎥/D, 80㎥/D Model are also applicable.
Common Specifications
- Control : Fully automatic operation system with independently developed electronic circuit sequence control method
- Operation : Functional convenience and user-friendly touch panel application
- Filter : Membrane (Pore size 0.25㎛)
- Tank and unit : Semi-permanent use without maintenance by applying stainless steel.

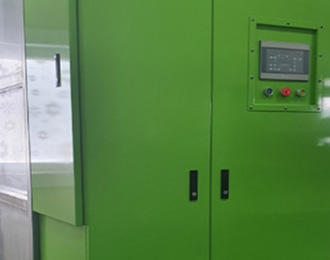

SWN-100

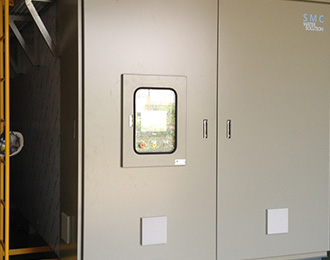

SWN-10

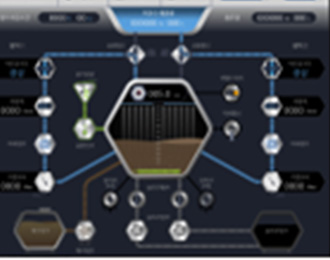

Touch pannel

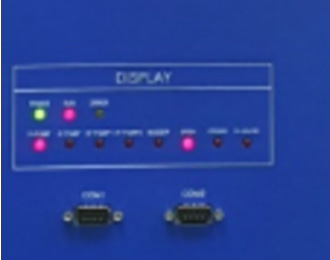

Circuit-based control
